How Tunnel Freezers Operate in Modern Food Industry
A tunnel freezer freezes food fast. This helps food stay good longer. The machine uses strong cooling and smart systems. Food stays safe and fresh. Tunnel freezers keep food’s texture and taste. They make tiny ice crystals. Look at the table below to see the difference:
Aspect | Quick Freezing (Tunnel Freezer) | Slow Freezing (Traditional) |
|---|---|---|
Ice Crystal Formation | Forms micro-crystals | Forms large ice crystals |
Texture | Maintains texture | Degradation (tough/mushy) |
Shelf Life | Extended | Reduced |
New technology helps food look and taste better. It also keeps food safe.
Key Takeaways
Tunnel freezers freeze food fast. This helps keep taste, texture, and nutrients.
Tunnel freezers help food last longer. They stop food from going bad and keep it safe.
There are two main tunnel freezer types. Fluidized IQF and Cryogenic work for different foods.
Good airflow and insulation help freeze food evenly. They also save energy.
Fast freezing with new technology keeps food fresh. It also keeps vitamins in the food.
Tunnel Freezer Overview
Definition and Main Features
You see a tunnel freezer in many food factories. This machine uses advanced technology to freeze food quickly. Food travels on a conveyor belt through a freezing zone. The temperature inside drops to about -35°C. This rapid freezing helps food move from room temperature to a deep-frozen state in a short time. You get food that keeps its taste, color, and nutrients.
A tunnel freezer stands out because of its special features.
It works without stopping, so you can process food all day.
The freezing happens fast, which forms tiny ice crystals. These crystals protect the texture of your food.
The conveyor system uses different materials to keep everything clean and efficient.
You lock in freshness, flavor, and nutrients.
The quick drop in temperature stops germs from growing.
The process slows down spoilage and keeps food from drying out.
Tip: When you use a tunnel freezer, you help keep food safe and tasty for longer periods.
Types: Fluidized IQF and Cryogenic
You can choose from different types of tunnel freezers. The two main types are fluidized IQF and cryogenic.
Fluidized IQF (Individual Quick Freezing):
This type uses strong cold air that blows up from below the conveyor. The air lifts and separates each piece of food. You get individually frozen items, like peas or shrimp. The food does not stick together. You keep the shape and quality of each piece.Cryogenic Tunnel Freezer:
This freezer uses gases like liquid nitrogen or carbon dioxide. The gas cools the food very fast. You see this type in places that need super quick freezing. Cryogenic tunnel freezers work well for delicate foods. You get high quality and less damage to the food.
Type | How It Works | Best For | Key Benefit |
|---|---|---|---|
Fluidized IQF | Cold air lifts food pieces | Small items (peas, corn) | No clumping, keeps shape |
Cryogenic Tunnel Freezer | Uses cold gas | Delicate foods | Very fast freezing |
You can pick the tunnel freezer that fits your needs. Each type helps you freeze food quickly and keep it fresh.

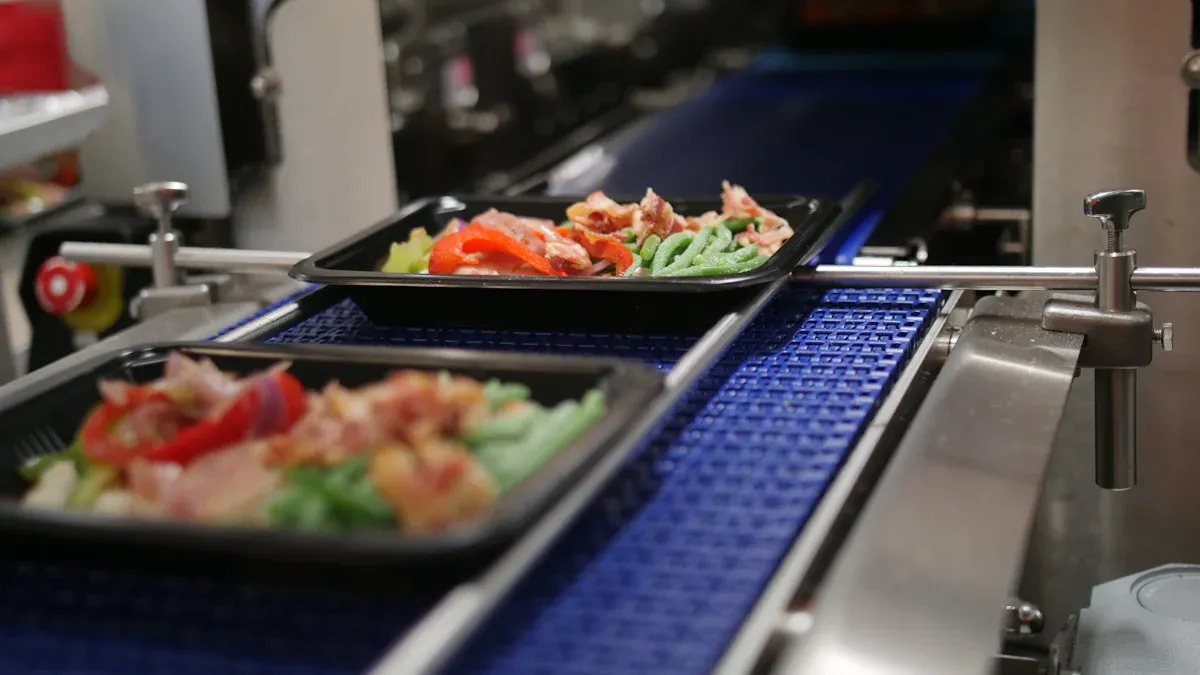

Tunnel Freezer Operation
Conveyor and Freezing Chamber
You put food on a conveyor belt. The belt carries food into a long freezing chamber. The chamber has thick insulation, like strong foam. This insulation keeps cold air inside. It also helps save energy. Special fans work in the cold chamber. These fans move cold air around the food. You use a smart system called a PLC to control things. The PLC lets you set the belt speed and temperature. You can choose the right freezing time for each food.
Note: Good airflow and a big heat transfer area freeze food fast and evenly. High-efficiency fans and strong insulation help you get better results.
Key design features for freezing chambers:
Big heat transfer area for quick freezing
Even airflow from fans that work in cold
Thick insulation keeps cold air inside
PLC controls make freezing smart
Airflow and Vibration Systems
Airflow is very important in a tunnel freezer. Fast fans blow cold air over and around the food. This moving air gets rid of warm spots. It helps take heat away from the food. You freeze food fast and evenly. Quick freezing makes tiny ice crystals. These crystals keep food’s texture and taste.
Some tunnel freezers use vibration systems. The conveyor shakes gently as food moves. This shaking keeps food pieces apart. You see this in fluidized IQF tunnel freezers. Shaking and airflow work together. They freeze each piece of food by itself. You stop clumping and keep each item’s shape.
Refrigerants and Temperature Control
You need the right refrigerant for a tunnel freezer. Each refrigerant has good and bad points. Here is a table with common types:
Refrigerant Type | Advantages | Disadvantages |
|---|---|---|
R22 | Used a lot, cools well | Hurts ozone, banned in many places |
Ammonia | Works well, costs less | Dangerous, needs safety steps |
R404A/R507 | Good for cold temperatures | Bad for the environment |
CO₂ | Safe for nature, not very toxic | Needs high pressure, not as good in heat |
You control the temperature in steps. Each step keeps food safe and good. The table below shows how you manage freezing:
Stage | Description |
|---|---|
Pre-cooling stage | Food cools from starting temperature to almost freezing. |
Maximum Ice Crystal Formation | Food’s center cools from 0°C to -5°C, which stops ice crystal damage. |
Deep-freezing stage | Food’s center cools more to storage temperature (usually -18°C or lower). |
You set the right temperature and belt speed for each food. This helps you freeze food quickly and safely. You keep the texture, taste, and color of your food.
Tip: Using the right refrigerant and careful temperature control keeps food safe and high quality.
Key Components
Mechanical Systems
A tunnel freezer has many important parts. Each part helps freeze food fast and safe. The table below shows the main parts and what they do:
Component | Function |
|---|---|
Quick-freezing Tunnel | This is a closed space where food gets frozen. It has an entrance and an exit. |
Conveyor System | It moves food through the freezer. You can change the speed. This helps freeze food evenly. |
Evaporator | It takes away heat and cools the refrigerant. This is needed for cooling. |
Fan System | Fans blow cold air over the food. This helps cool the food from the evaporator. |
Refrigeration System | It pushes the refrigerant, gets rid of heat, and controls how much refrigerant moves. |
Defrost System | It removes ice from the evaporator. This keeps the freezer working well. |
Control System | It lets you set the temperature and speed. It also controls the refrigeration system. |
Insulation | It keeps the cold air inside. This helps save energy. |
You can change the conveyor speed for different foods. Fans blow cold air over all the food. The evaporator and refrigeration system keep the freezer cold. The defrost system gets rid of ice so the freezer works well. The control system helps you set the right temperature and speed.
Safety and Insulation
Tunnel freezers have safety features to protect workers and food. The table below shows some important safety features:
Safety Feature | Description |
|---|---|
Reduced Dehydration/Weight Loss | It stops food from losing water and getting freezer burn. This keeps food safe and good. |
Defrost System | It uses hot gas, water, or electricity to remove ice. Water defrosting is very clean and keeps food safe. |
Good insulation saves energy and keeps cold air inside. Most tunnel freezers use special foam. This foam stops heat from coming in. It keeps the temperature steady.
Special foam keeps energy loss low.
Thick insulation helps the freezer work better and saves money.
Tip: Using a tunnel freezer with strong insulation and safety features keeps food and workers safe.
Industry Benefits
Quality Preservation
You want your food to taste good and stay fresh. Tunnel freezers help keep food at its best. Fast freezing stops big ice crystals from forming. Small ice crystals protect the food’s texture and color. This keeps the flavor inside the food. Fruits, vegetables, and seafood look and taste better after freezing. You also keep more vitamins and nutrients in your food.
Modern tunnel freezers use new technology to make food better. Airflow systems cool food evenly. Refrigeration cycles freeze food faster. Strong insulation keeps cold air inside and saves energy. The table below shows how these new features help:
Advancement Type | Description |
|---|---|
Improved Refrigeration | Better refrigeration cycles make freezing more efficient. |
Enhanced Airflow Systems | Advanced airflow cools food evenly and freezes it faster. |
Better Insulation Materials | Superior insulation saves energy and keeps food cold. |
Tip: Fast freezing with new technology keeps food safe, fresh, and full of nutrients.
Efficiency and Microbial Control
You need a freezer that works quickly and saves energy. Tunnel freezers freeze lots of food in less time. You can run your production line all day. The conveyor moves food smoothly. You can set the speed for each product. Good insulation keeps cold air inside and uses less energy.
Microbial control is important for food safety. Quick freezing stops bacteria and mold from growing. This lowers the risk of spoilage. Your food stays safe for longer storage. Freezing also reduces dehydration and weight loss. You get more food that stays fresh and safe.
Benefits you get:
Faster production
Lower energy costs
Safer food with less bacteria
Longer shelf life
Note: Tunnel freezers help you meet safety rules and give customers high-quality food.
You can see that tunnel freezers use smart machines to freeze food fast. This helps food stay fresh and safe. It also keeps vitamins and nutrients in the food. Fast freezing stops bacteria from growing. It keeps the color and taste strong. Check the table below to see the main benefits:
Benefit | What You Get |
|---|---|
Food stays fresh, keeps color and taste | |
Microbial Control | Food is safer, does not spoil as fast |
Enzyme Inactivation | Stops browning and bad flavors |
Reduced Dehydration | Less freezer burn, food feels better |
These new machines help you get better frozen food every day.
FAQ
How does a tunnel freezer keep food from sticking together?
You see airflow and gentle vibration in the tunnel freezer. These systems move each piece of food apart. You get frozen items that do not clump. This helps you keep the shape and quality of your food.
What foods work best in a tunnel freezer?
You can freeze fruits, vegetables, seafood, meat, and baked goods. Small items like peas or shrimp freeze well. Delicate foods also keep their texture and color. You choose the right tunnel freezer for your product.
Is a tunnel freezer safe for workers?
You find safety features like emergency stops and insulated panels. These protect you from cold and moving parts. You also see clear controls and alarms. Workers stay safe while using the machine.
How does a tunnel freezer help with food safety?
You freeze food quickly. This stops bacteria and mold from growing. You keep food safe for longer storage. Fast freezing also reduces dehydration and keeps nutrients inside.
