Understanding the Functionality of Chiller Units

bella

·April 19, 2025

·13 min read

Understanding the Functionality of Chiller Units — Image Source: pexels

A chiller unit plays a crucial role in cooling systems by removing heat from liquids or processes. Using a refrigeration cycle, the chiller unit transfers heat to another location, ensuring the liquid or process maintains a consistent temperature. Chiller units are commonly found in factories, food processing plants, and data centers, where precise cooling is essential for optimal operation. They prevent overheating, which could damage machinery or create operational issues. By maintaining proper cooling, chiller units enhance machine performance and extend their lifespan.

Key Takeaways

Chillers help cool things in factories, food plants, and data centers. They stop machines from getting too hot and keep them working well.
The cooling process uses four main parts: compressor, condenser, expansion valve, and evaporator. These parts work together to keep temperatures steady.
Picking the right chiller depends on what you need. Air-cooled, water-cooled, or absorption chillers are options based on water use and energy savings.
Taking care of chillers is important. Clean the coils and check refrigerant levels to save money and keep them running smoothly.
Use chillers with eco-friendly refrigerants and energy-saving designs. This helps the planet and makes cooling systems better for the environment.

How Chiller Units Work

The Refrigeration Cycle

Chillers use a process called the refrigeration cycle to work. This process moves heat from one place to another. A common method, the vapor compression cycle, works in a closed system. It uses a refrigerant to take heat from the liquid or process being cooled. The refrigerant then releases this heat into air or water. This cycle keeps the system at a steady temperature.

The refrigeration cycle has several important parts. The compressor starts the process by squeezing the refrigerant gas. This raises its pressure and temperature. The condenser cools the refrigerant by releasing heat into air or water, turning it into a liquid. The expansion valve lowers the refrigerant's pressure, making it expand and cool. The evaporator then absorbs heat from the liquid or process, cooling it before sending it back. These parts work together to move heat efficiently.

Heat Absorption and Transfer

Heat absorption and transfer are key to how chillers work. The evaporator is very important in this process. It takes heat from the liquid or process that needs cooling. As the refrigerant moves through the evaporator, it changes from liquid to gas, taking in heat. The cooled liquid is then sent back to keep the temperature steady.

The heat taken by the refrigerant must go somewhere. The condenser handles this job. It moves the heat from the refrigerant to air or water. Air-cooled chillers use fans to blow air over the condenser. Water-cooled chillers use water to carry the heat away. This heat exchange helps the system keep cooling the liquid or process.

Types of Chillers (Air-Cooled, Water-Cooled, Absorption)

There are different types of chillers for different needs. Air-cooled chillers are good for places with little water. They use fans to move heat into the air. These chillers are easy to set up and maintain. They are often used in small buildings or areas with no water access.

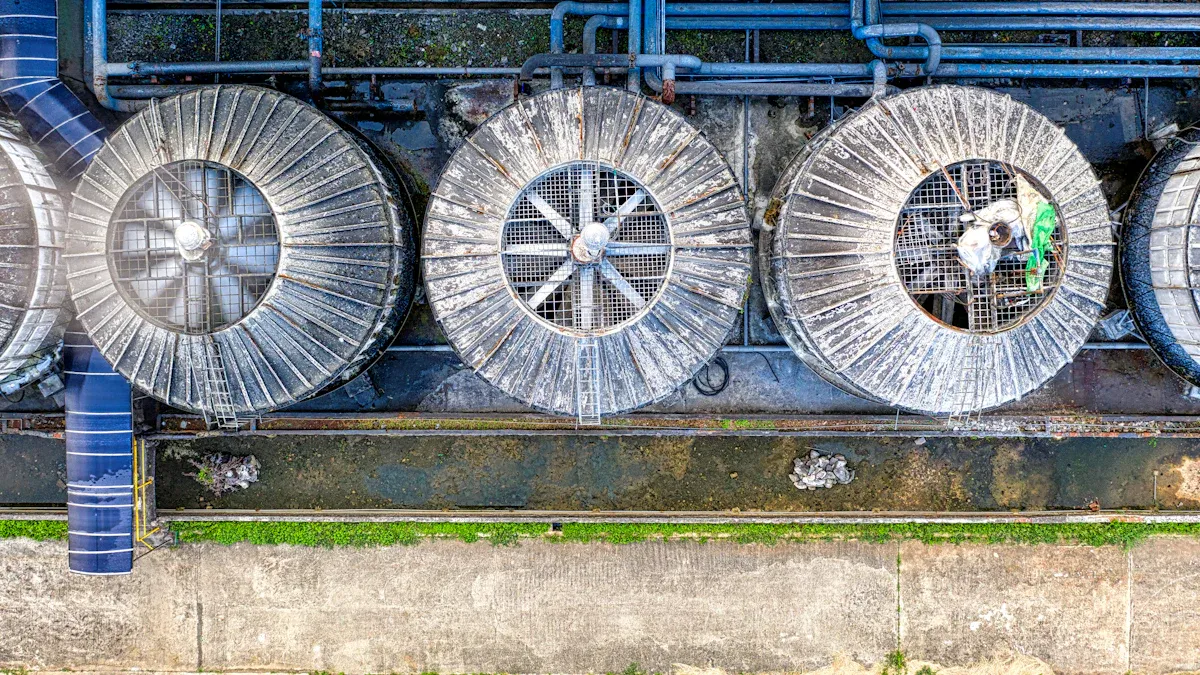

Water-cooled chillers use water to remove heat. They save more energy than air-cooled chillers and are used in big factories. These chillers need cooling towers to release heat into the air. They are harder to install but work well for large operations.

Absorption chillers work differently. They use heat, like steam or hot water, instead of a compressor. These chillers are used in places with extra heat, like power plants. They are eco-friendly and save energy by using waste heat.

Tip: Think about energy use, setup needs, and water or heat sources when picking a chiller. This helps you choose the right one for your needs.

Components of a Chiller Unit

Knowing the parts of a chiller helps you understand how cooling works. Each part has a job to keep temperatures steady and remove heat.

Compressor

The compressor is the main part of the chiller. It begins cooling by squeezing refrigerant gas, making it hotter and under high pressure. This step is important for moving heat. Compressors come in types like scroll, screw, and centrifugal, made for different cooling tasks.

New compressors have many benefits. They save energy and lower power bills. Some have smart sensors and thermostats for better temperature control. These features help chillers work well and stay cool. Automated systems also reduce upkeep, saving time and effort.

Did You Know? Compressors not only run the cooling cycle but also help machines work faster by cutting down cycle times.

Condenser

The condenser is a key part that removes heat. It cools the refrigerant, turning it into a high-pressure liquid. This step gets the refrigerant ready for the next stage. Condensers are often made with copper tubes and aluminum fins to improve cooling.

Air-cooled condensers use fans to blow air over coils, removing heat. These fans spin at about 900 RPM for good performance. Water-cooled condensers use water to carry heat away, making them great for big factories. After cooling, the refrigerant reaches about 110°F (43°C), showing how well the condenser works.

Expansion Valve

The expansion valve is important for cooling. It controls how much refrigerant goes into the evaporator. This lowers the refrigerant's pressure and temperature, helping it absorb heat. By managing refrigerant flow, the valve keeps cooling steady.

Expansion valves also save energy. They stop too much refrigerant from entering the evaporator, avoiding waste. Modern valves are easy to adjust, giving you more control over cooling.

Tip: Check the expansion valve often for clogs or damage. A clean valve keeps your chiller running efficiently.

Evaporator

The evaporator is a key part of a chiller. It removes heat from the liquid or process needing cooling. Inside, the refrigerant moves through coils. As it flows, it takes heat from the liquid. This makes the refrigerant turn into gas. The cooled liquid is sent back to keep the temperature steady.

Evaporators have different designs, like shell-and-tube or plate-type. Shell-and-tube models are used in factories. They have a big shell with tubes for refrigerant flow. Plate-type evaporators use thin plates for compact heat exchange. Both designs help transfer heat well, which is vital for chillers.

Regular care keeps the evaporator working well. Clean the coils and check for leaks often. A clean evaporator cools better and lasts longer. This also helps the whole chiller system work efficiently.

Tip: If cooling drops, check for dirt or leaks in the evaporator. Fixing these quickly saves energy and lowers costs.

Refrigerant

The refrigerant is the main fluid in a chiller. It absorbs and moves heat during cooling. It changes between liquid and gas as it cycles. This lets the chiller remove heat effectively.

New refrigerants balance performance and environmental care. For example, R-1234ze is used in air conditioning. It works well and has less global warming impact. Hydrocarbon refrigerants like propane are also eco-friendly. They help reduce greenhouse gases while cooling efficiently.

When picking a refrigerant, think about efficiency and rules. The right refrigerant improves performance and supports green goals.

Note: Using eco-friendly refrigerants shows care for the environment. Choosing ones with low global warming effects helps create greener cooling systems.

Applications of Chillers in Industrial Cooling

Manufacturing and Production

Chillers are important in factories and production areas. They keep machines and processes at steady temperatures. This stops overheating, which can break equipment or lower efficiency. For example, in plastic molding, chillers cool molds to shape products correctly. In metalworking, they remove heat from cutting or welding, improving accuracy and tool life.

Chillers also boost productivity. They keep machines from overheating, reducing downtime. This helps operations run smoothly and increases output. Whether in car making, electronics, or textiles, chillers offer dependable cooling for your needs.

Food and Beverage Processing

Chillers are key in food and drink industries. They keep ingredients and products at safe temperatures. This stops spoilage and keeps quality high. For example, chillers cool milk during pasteurization and keep drinks like soda fresh during production.

Water-cooled scroll chillers work well in this field. Studies show they are efficient and reliable for cooling needs. These chillers help with fermentation, freezing, and storage, where exact temperatures are crucial. Using chillers helps meet rules and deliver top-quality products to customers.

Chemical and Pharmaceutical Industries

Chemical and pharmaceutical industries need chillers for exact temperature control. Many chemical reactions need cooling to stay safe and work well. Chillers also stop equipment like mixers from overheating, lowering accident risks.

In pharmaceuticals, chillers protect temperature-sensitive items. They cool vaccines and medicines during production and storage. This keeps them effective and meets strict quality rules. Advanced chillers improve safety, efficiency, and product quality in these industries.

Data Centers and Electronics

Chillers are important for keeping data centers cool. Servers and hardware in these places create a lot of heat. Without cooling, machines can overheat and stop working. This could cause data loss or expensive downtime. Chillers help keep temperatures steady and systems running smoothly.

Modern chillers for data centers have smart features. Some use magnetic bearings, which don’t need oil and save energy. Others have a "free-cooling" mode that uses outside air in cool weather. These features lower energy use and save money while keeping things cool.

Reliability is also very important. Some chillers use machine learning to stop problems before they happen. Designs like cold plates with extra checks prevent leaks. These features make chillers a safe choice for protecting electronics.

Here’s a simple look at why chillers are great for data centers:

Feature	What It Does
Energy Efficiency	Saves energy with oil-free parts and magnetic bearings.
Advanced Cooling Technologies	Uses smart designs like 'free-cooling' for better cooling.
Operational Reliability	Machine learning stops problems and keeps chillers working well.
Sustainability	Uses eco-friendly refrigerants to help the environment.
Leak Prevention	Special designs and checks stop leaks from happening.
Integrated Control System	A system to manage cooling and save energy easily.

Using chillers in data centers helps control temperature and cut energy costs. They also make equipment last longer. This makes chillers a must-have for modern electronics and storage spaces.

Benefits and Challenges of Chiller Units

Energy Efficiency and Cost Savings

Chillers cool efficiently while using less energy. Modern chillers have smart controls and variable-speed compressors. These features adjust cooling to match your needs. This saves energy and lowers costs. Water-cooled chillers use less electricity than air-cooled ones. They are better for large operations and cut utility bills over time.

Tip: Clean coils and check refrigerant levels often. This keeps your chiller working well and saves money.

Precision Cooling for Specific Needs

Chillers provide exact temperature control for special needs. They are great for data centers, labs, and food plants. In data centers, chillers stop servers from overheating. In food processing, they keep products fresh and safe.

This accuracy improves product quality and protects equipment. By keeping temperatures steady, chillers prevent damage from overheating or sudden changes.

Maintenance and Operational Challenges

Chillers need regular care to work well. Tasks like cleaning filters and checking for leaks take time and skill. Skipping maintenance can cause poor performance or breakdowns.

Environmental factors can also cause problems. Air-cooled chillers may not work well in hot places. Water-cooled chillers need a steady water supply. Older chillers might use harmful, outdated refrigerants. Switching to eco-friendly systems fixes this but costs more upfront.

Note: A good maintenance plan and the right chiller type help solve these issues.

Environmental Impact and Sustainability

Chiller units are important for cooling but can harm the environment. It’s crucial to think about their effect on sustainability when choosing a system. Chillers use a lot of energy, which adds to greenhouse gases. New technology is helping to lower this environmental impact.

Modern chillers are designed to save energy. They use features like variable-speed compressors and smart controls. These features help them use less electricity. This cuts costs and reduces carbon emissions. Picking energy-saving chillers helps create a cleaner future.

The refrigerants in chillers also affect the planet. Older chillers use refrigerants with high global warming potential (GWP). These can damage the ozone layer and worsen climate change. Newer chillers use eco-friendly refrigerants. Examples include hydrofluoroolefins (HFOs) and natural options like ammonia or propane.

Water use is another issue to think about. Water-cooled chillers need a lot of water to work. They are more efficient than air-cooled systems but can stress water supplies. Some systems recycle water or use other methods to waste less.

You can make chillers more eco-friendly. Regular maintenance keeps them running well and stops leaks. Upgrading to newer, greener systems also helps the environment. Smart choices lead to more sustainable cooling solutions.

Tip: Choose chillers with ENERGY STAR or LEED certifications. These meet high environmental standards.

Knowing how a chiller works and its parts is helpful. Chillers keep temperatures steady, which is vital for industries. They are used in factories, food plants, and data centers. Taking care of chillers avoids problems and saves money.

More people want chillers that save energy and help the planet. Between 2025 and 2032, the Data Center Indoor Chillers market will grow a lot. This shows the need for better cooling in busy tech spaces. It also reflects stricter energy rules. Picking modern, green chillers helps the environment and meets cooling needs well.

FAQ

What does a chiller unit do?

A chiller unit cools liquids or processes by removing heat. It keeps temperatures steady for industries like factories, food plants, and data centers.

How do you pick between air-cooled and water-cooled chillers?

Pick air-cooled chillers if water is hard to get. Water-cooled chillers work well for big jobs but need a steady water supply.

How often should you take care of a chiller?

Clean coils, check refrigerant, and inspect parts every 3–6 months. Regular care keeps the chiller working well and avoids problems.

Can chillers use refrigerants that are better for the environment?

Yes, many chillers now use eco-friendly refrigerants like HFOs or ammonia. These options cool well and are safer for the planet.

Which industries use chillers the most?

Factories, food plants, medicine makers, and data centers use chillers a lot. They help control temperatures, protect machines, and improve product quality.
